1970 Fox Minibike Part 9


Being unable to find a proper Fox chrome gas tank, 😔meant finding an alternative. They look so good, nothing comes close.

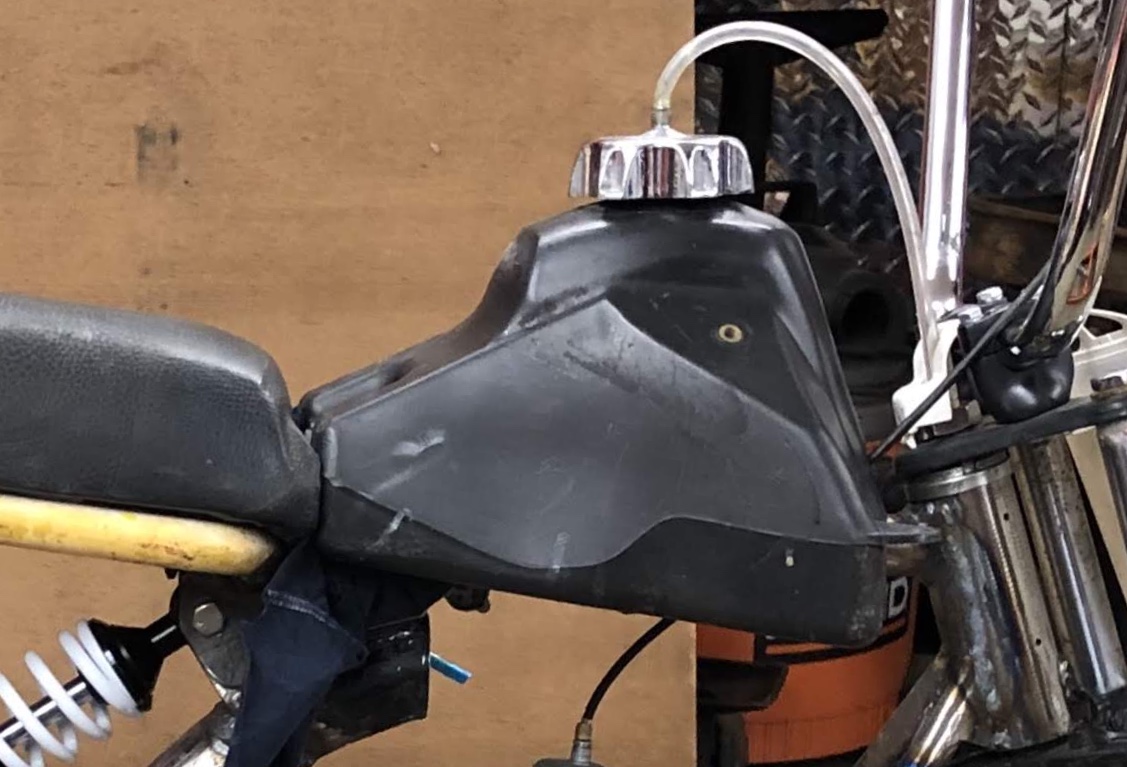

There was no way I was going to use the pit bike tank.  It looked like something from Star Wars!

A friend, George’s dad collected old engines, mowers, tillers, etc. and I grabbed about five different ones.  There were some neat looking types, but none fit well enough.  I had a black Briggs & Stratton tank left over from other projects, so I used it.

I grabbed an old governor mounting plate and trimmed the original gas tank mounts from it.

These two ends were shaped to fit the main tube of the bike and welded on.  This finished up the tank install.  Being plastic, rust won’t be a problem in the fuel system.  Should I come across a nice Fox tank, I could cut the tabs off easily  and having kept the original tank tabs, it could be installed.  Next, tabs were cut from sheet metal for the coil mount and welded on.  The CDI was held in place by a tab, directly behind the coil mount.  This was an effort to tidy up the wiring and keep it dry.

A fuel line was cut and installed.  Gas was added and the tires inflated.  Test drive time!!
